The Story
XD Series 9"
LED Driving Lights
Pouring light 1500m down the road, our XD Series puts the light where you need it most – the beam angle flooding out comfortably over both sides of the road with its 75° beam angle.
There’s really only one question. Where to next?
The XD Series 9” LED Driving Lights are built to deliver serious light output without the premium price tag. Designed to throw usable light up to 1500 metres down the road, they give you the distance you need for high-speed highway driving and remote night runs where visibility matters most.
With a wide 75° beam angle, the XD Series doesn’t just punch light straight ahead. It spreads illumination comfortably across both sides of the road, helping you spot hazards, wildlife, and track edges earlier, without harsh hotspots or wasted glare.
Running at a balanced 5700K colour temperature, these lights provide a clean, natural light that’s easy on the eyes and reduces fatigue on long night drives. The result is clearer contrast, better depth perception, and less reflection off road signs and dust.
Built for Australian conditions and designed for real-world touring and off-road use, the XD Series combines robust construction with a practical beam pattern that works where it counts. From outback tracks to long coastal highways, these lights put the light where you actually need it.
No gimmicks. No unnecessary extras. Just solid performance you can rely on when the sun goes down.
Specifications
Housing material: Powder-coated die-cast aluminium
Bracket material: Powder-coated 3.4mm iron bracket
Lens material: UV-coated polycarbonate
Size: 229 (L) x 230 (H) x 97 (D) mm
Weight: 2.6kg (each)
Raw lumens: 26,800lm (pair)
Effective lumens: 23,140lm (pair)
1-lux rating: 1,500m
Beam angle: 75°
Peak intensity (candela): 1,140,000cd
CRI: 70
Colour temperature: 5,700K
LED chips: 20x OSRAM, 4x LUMINUS
Operating voltage: 10-30V DC
Current draw: 11.67A @ 12V / 5.83A @ 24V
Wattage: 140W
Operating temperature: -40°C – 80°C
Ingress protection: IP68 / 9K

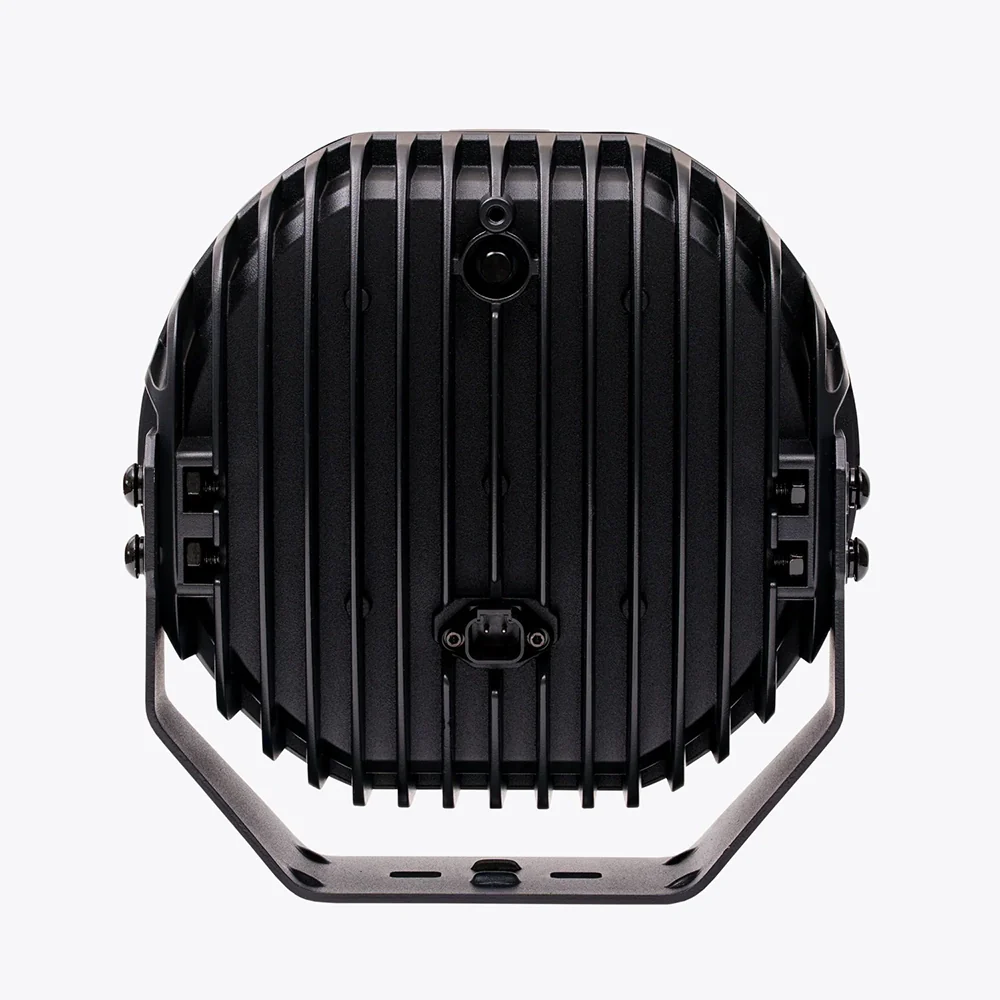

Connector: 2-Pin Deutsch DT Connector
Certifications: EMC-CISPR 15, IP68/69K, CE-ROHS

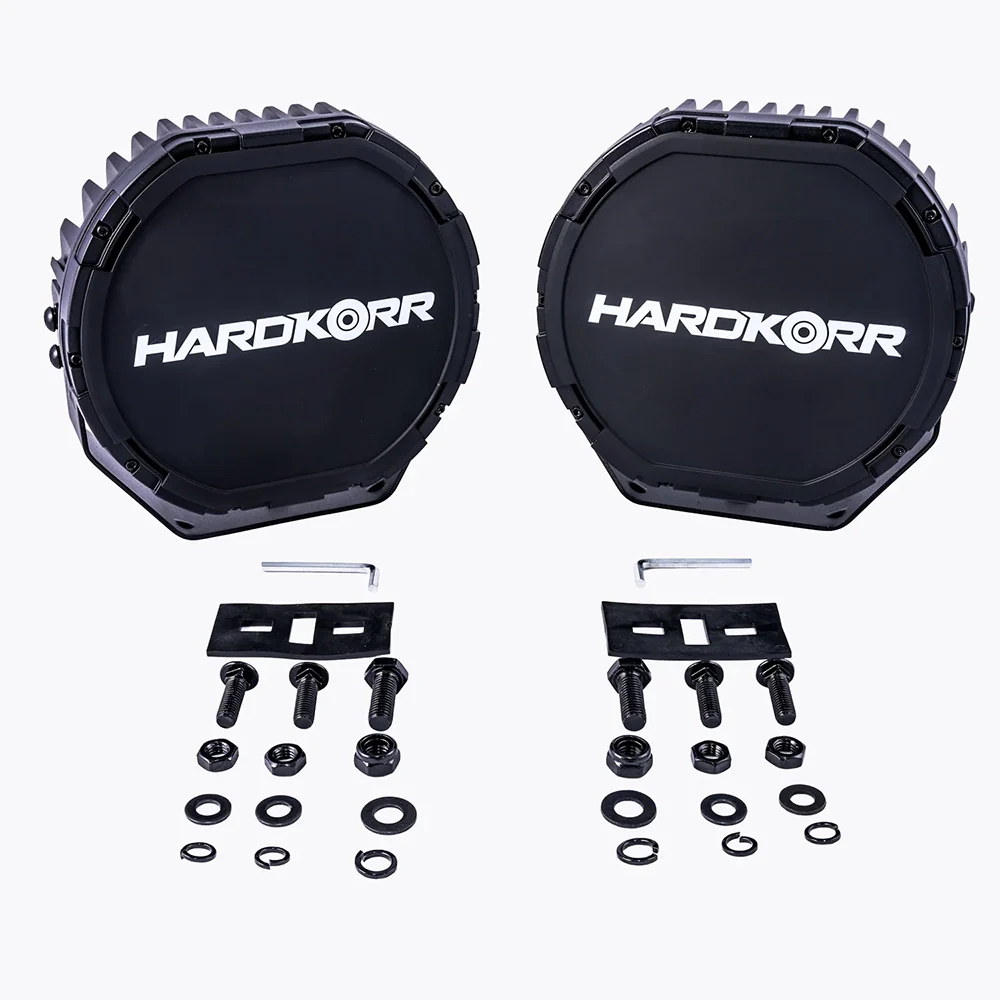

Item Included
2x XD-Series Driving Lights

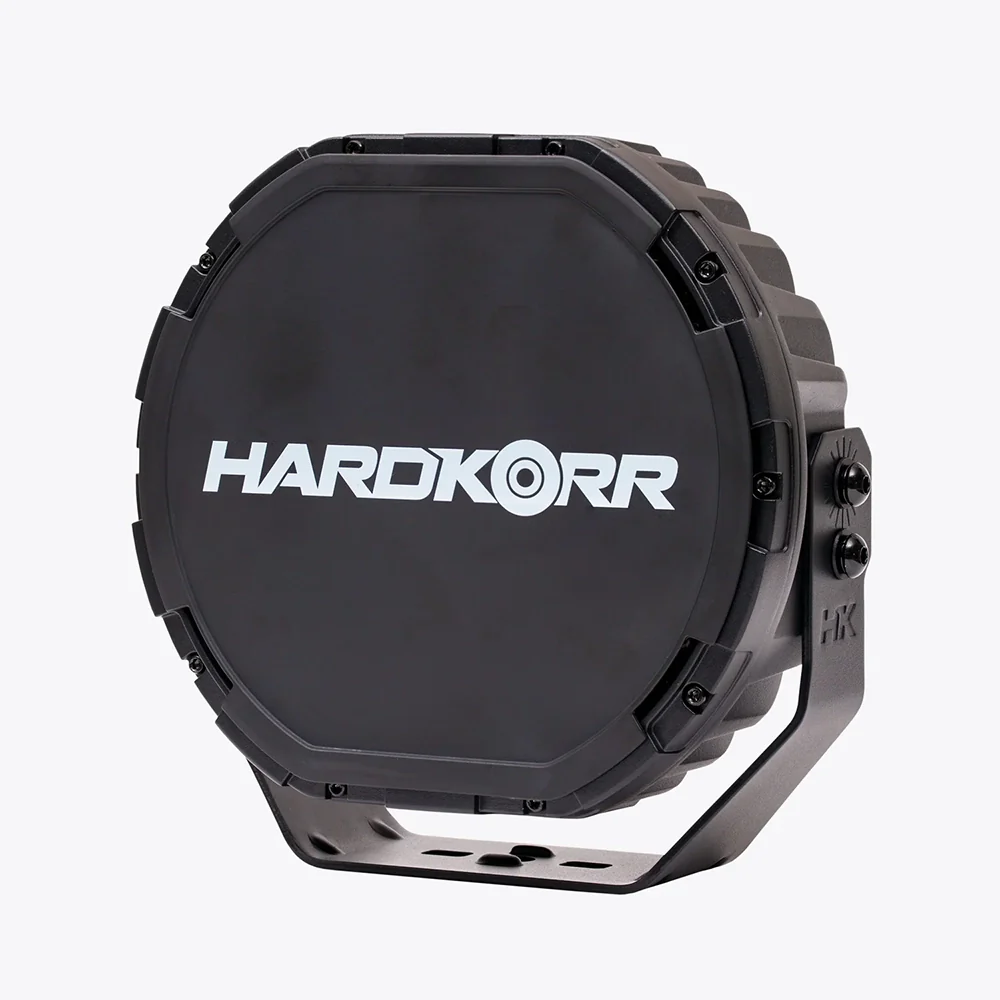

2x Black lens covers
6x Stainless steel bolts
6x Washers
6x Nuts
2x Rubber mounting pads
Documentation Warranty card
NOTE: Wiring Harness sold separately
Note: this is a bulky item and is excluded from free delivery offers
